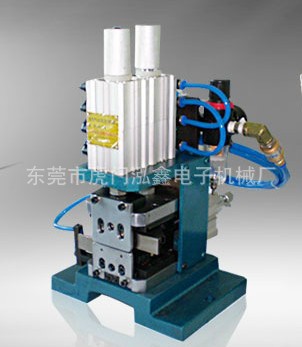

Name： HX-3FN vertical peeling twisting line

Published:2015-05-28 10:11:10Click to rate：

HX-3FN pneumatic peeling twisting line (Standard Edition)

Feature :( can replace a core wire stripping machine + a half-twisting line stripping machine)

* This machine is suitable for fine to medium coarse multi-core computer line, the tail telephone lines, parallel lines, power lines, twisted wire stripping processing;

* Compact design makes the machine compact structure, compact, easy to operate;

* Multiple synchronized peel twist multiplier function and work efficiency, quality is more perfect;

* The machine is compared with other similar products have absolute cost advantages, greater savings in operational personnel,

Cheap;

Model	HX-3FN
Dimensions	L350XW230XH300MM
Weight	15KG
Power supply	AC 110V/220V 50/60HZ
Twisted capacity	1-10 / second
Twisting range	AWG#18-AWG#32 0.1-0.75㎡
Minimum length peel twist	3MM
The maximum length of twisted wire	25MM
Peel twist rate	120-30 beats / per minute (adjustable)
Power	90W
