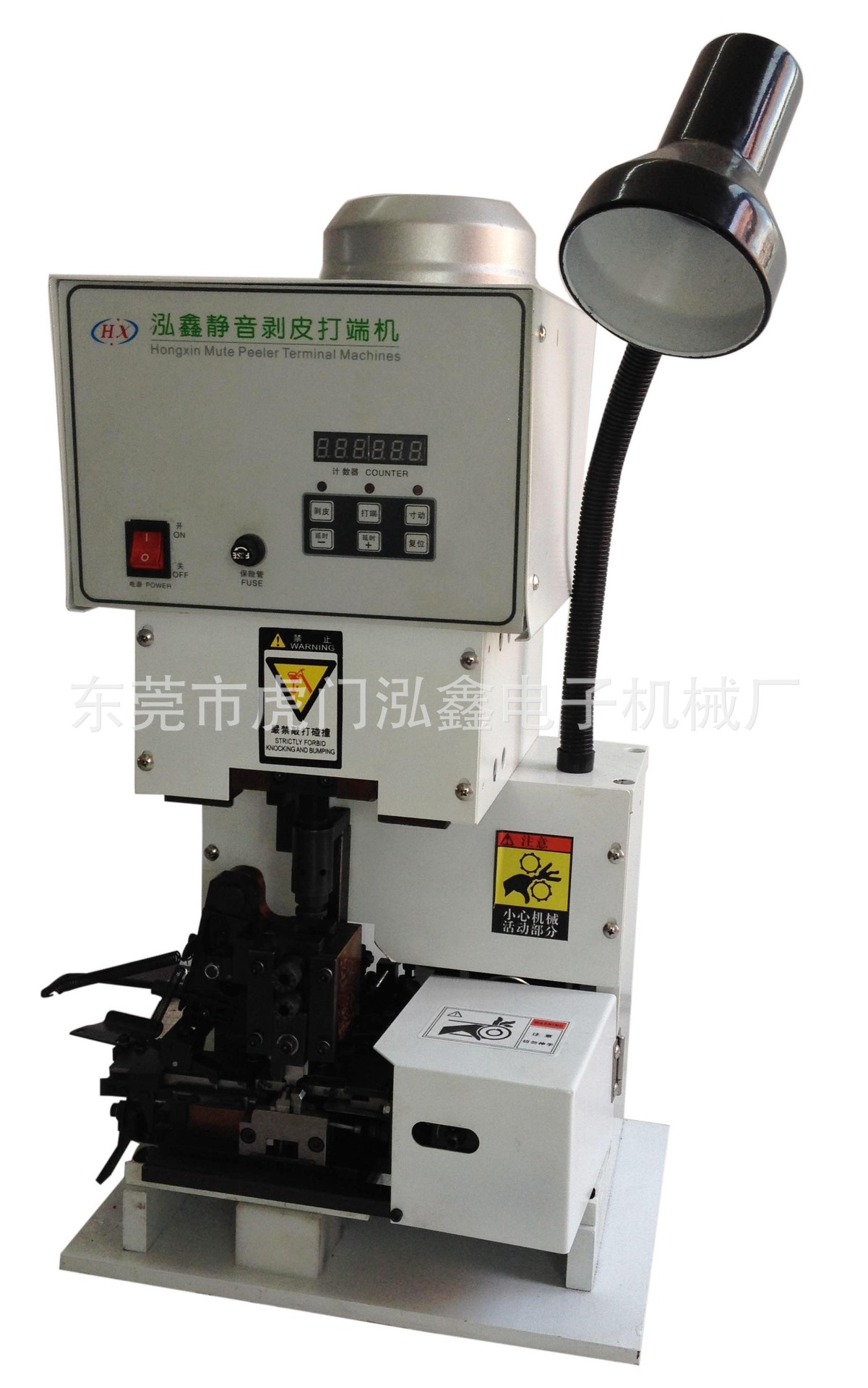

Name： HX-180 automatic skinned fighting machine

Published:2015-05-28 10:05:06Click to rate：

I. Features:

11, the machine Features: wire stripping and crimping action is completed. Combination cassette mold base and stripping system allows the machine to achieve coherent action.
2, stripping system uses stepper motor drive, and instantly start to produce high torque effect.
3, stripping system is designed with the automatic, manual and automatic back function.
4, standby time adjustable: sight material and the terminal needs, and the time required to reset the "pinch-skinned base" When the terminal riveting complete.
5, using the Cam manner stripping and infeed depth, Wen qualitative high.
6, the tightness of the terminal riveting machine table side by trimming the rotation adjustment, adjustment precision each grid 0.02mm ..
7, there is designed to extract lines of dander and stripper means

Second, the specification:

Model	HX-180
Dimensions	L350W270H650MM
Power supply	AC 110V/220V 50/60HZ
Pressure Relay	2.0TOM
Horsepower	90W
Stroke	30M/M
Weight	65KG
Applicable Wire	AWG#18-AWG#36
Stripping length	0.5-15MM
