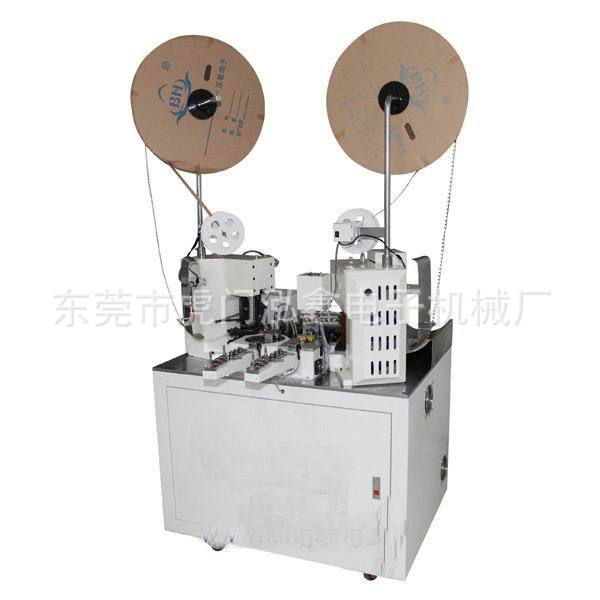

Name： Automatic double combined pressure terminal machin

Published:2015-05-28 10:00:21Click to rate：

双线并线端子压着机

A, automatic terminal machine overview:

Whole series of automatic terminal machine all can be a large number of alternative labor, make the factory no longer relies heavily on artificial.

Automatic double terminal machine (standard) and technical features:

1: can finish one end of the two wires and a (pressure) on the same planet terminal, single end complete single-ended pressure at the same time, the other end can be half stripping or peeling.

2: one end of the single terminal riveting pressure, wear good sheath at the same time.

3: horizontal type card die and straight type card die all can use, and the ability to quickly change the use.

4: wire cutting length, stripping length, package adopts touch screen nc glue depth. Easy to learn and easy to understand, simple learning can be proficient in operation.
Second, the detailed description:

Automatic double closed pressure terminal machine (standard) products parameters:
Type no.	HX-22
Mechanical Dimensions	750 L1000W 1862H(MM)
Maximum capacity	3500-4000 / hour (length = 150 mm)
To adapt to the wire	AWG1007#18-#28
Cutting length	65 mm to 1500 mm (need) assembly conveyor belt more than 800 mm
Precision cutting line	Adjustment range 0.5MM + cut length × 0.5% or less
Stripping length	End of the (MAX) 14MM, the front end (MAX) 10MM (For long strip, to be ordered)
Crimping capacity	Standard 2TON (casting ultra-quiet terminal machine clutch 2.0T)
Power	0.75KW
Power supply	AC220V 50HZ single-phase
Compressed air	0.5MPA(5kgf/cm)
Weight	500KG
Control mode	MSP430E microcontroller, 165NA / MIPS mode, 5US standby wake-up, high-speed operation
Detecting means	1: Crimping bad 2: Have 3 terminals: whether the lack of cable tie 4: Pressure Anomaly 5: 6 machine exception: the total amount
Other Accessories	1. card mode and put the thread insert disc 2. 3. 4. axis vertical wire feeder put thread 5. long conveyor belt 6. pressure sensing system

■ Product Features: wire cutting, stripping a single-ended, single-ended pressing, double-end strip, double-ended pressing, double and hit, a single-ended to wear jacket

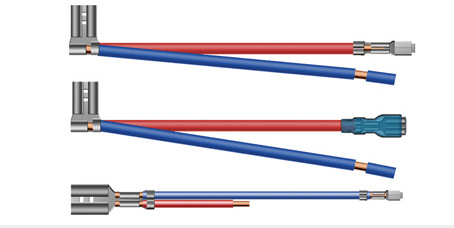

■ Applicable wire:
■ Twisted longest 8mm, minimum 3mm, more than 8mm twisted wire twisted wire with optional stand-alone device.

[ Back ] [ Print ] [ Shut down ]
