Features:

1, Panasonic PLC control system, wire cutting, stripping, pressing end once completed, stable performance.

2, 7-inch color touch screen screen, digital control, easy to operate.

3, four-wheel drive wire feed, efficient and stable.

4, Japan THK rails, SMC pneumatic components, OMRON detection component.

5, Panasonic servo rotating mechanism, low noise and good stability.



Specifications:

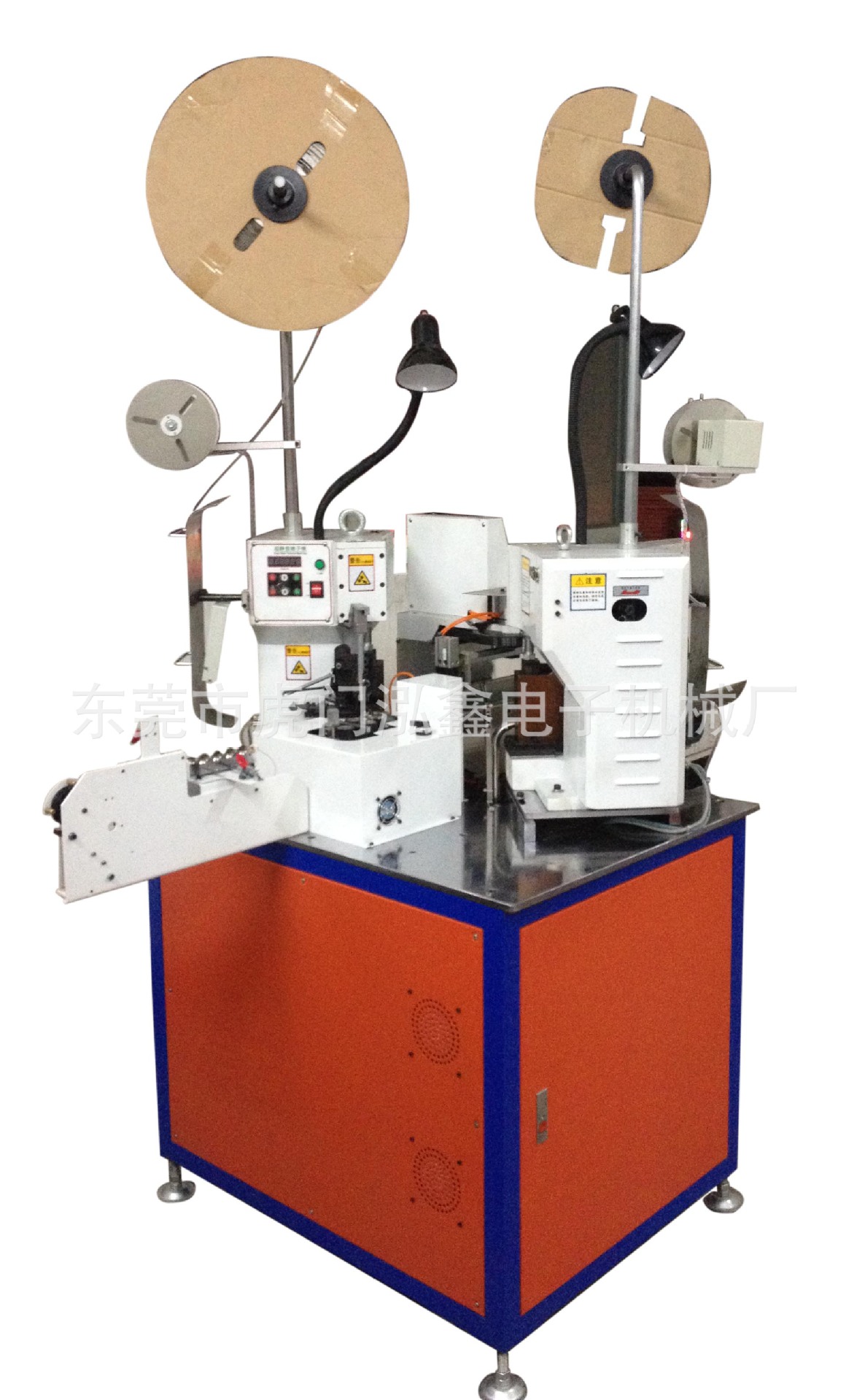

Model	HX-02
Wire Size	0.08 ~ 2.0mm2 (AWG # 28 ~ # 14)
Capacity	Crimping ends: 4800 / hour
Function	Both ends of the strip, both ends of the semi-stripping,crimping both ends
Cutting length	35 ~ 9999mm
Cutting accuracy	± 0.2 + (setting length × 0.002)
Stripping length	Front-end: 1.00 ~ 15.00 / 25.00mm backend: 1.00 ~8.00mm
Detecting device	Detecting the presence or absence wire, wire tie detection, Crimping bad testing, air pressure detection
Press the machine	2.0 / 2.5TON quiet terminal machine 2
Power supply	Single phase: AC220V 20A
Compressed air	0.5 MPa 140NL / min
Mechanical Dimensions	1000 W × 800 D × 1450 H (mm)
Weight	320
